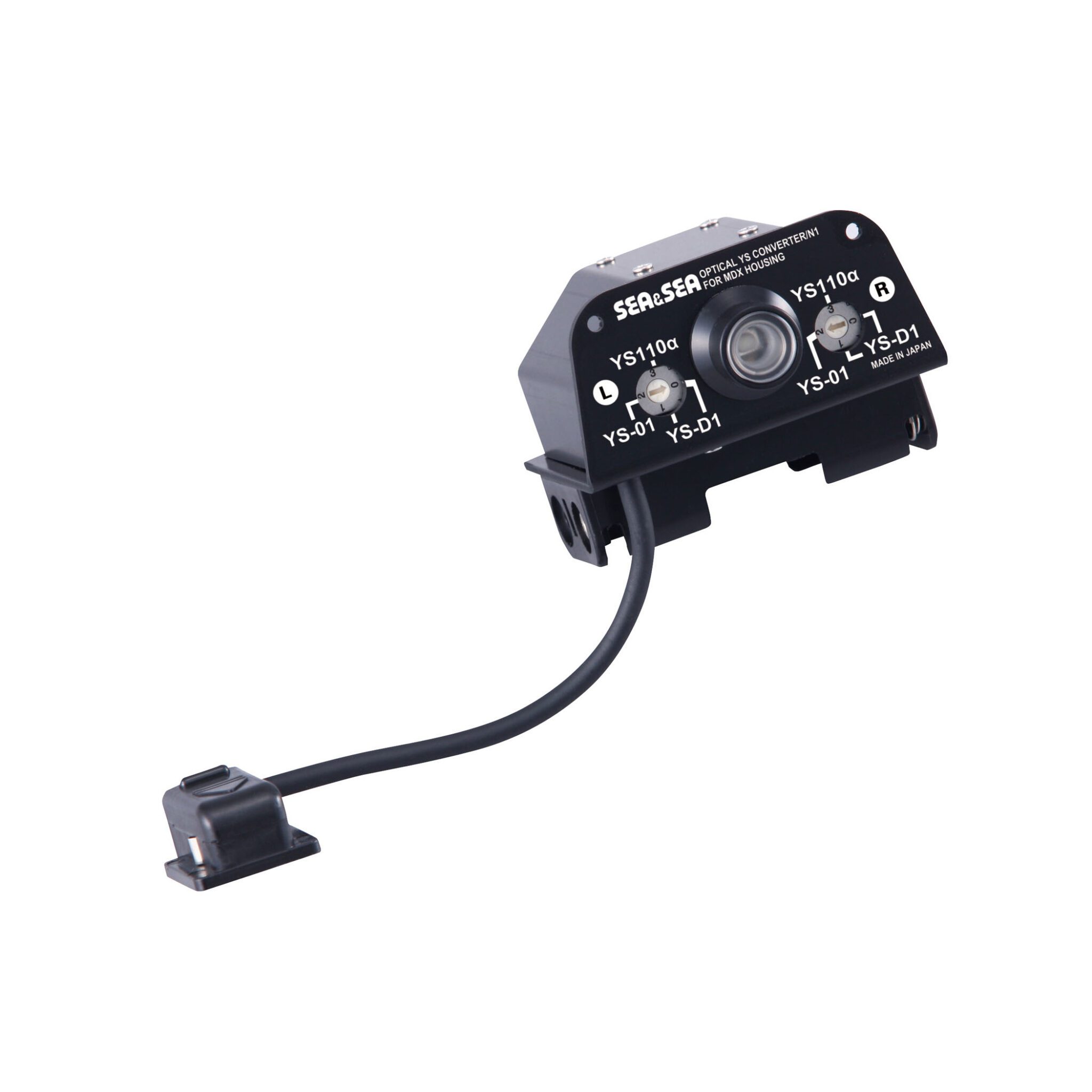

Optical YS Converter/N1 for MDX housing

A compact unit that converts the camera’s TTL signal to a light signal. The converter can be mounted on the camera’s accessory shoe and can be connected to (a) SEA&SEA strobe(s) with Fiber-Optic Cable(s) (*). TTL and manual modes can be switched by pushing the mode switch on the housing.

* SEA&SEA’s Fiber-Optic Cable II must be used with an Optical YS Converter.

［Compatible housings］MDX-Z7 MDX-D850 MDX-D810 MDX-D7100 MDX-D500



Optical YS Converter/N1Specifications

[Controls] Power ON/Power OFF/TTL mode (indicated by the blue lamp)/Manual mode (indicated by the green lamp)

* Remaining battery level is indicated by flashing LED lamp.

[Auto Power Off] The converter will automatically power off if the shutter lever or the mode switch is not activated for more than one hour.

* The converter can be re-activated by pressing the mode switch.

[Power Source] 2 x AAA battery (Alkaline: 3.0V / Ni-MH: 2.4V)

[Power Source] (*1) Alkaline: 15 hours / Mi-MH: 12 hours (*2)

[Construction] Aluminum alloy (case)

[Dimensions (WxHxD)] 54.4 x 39.5 x 53.3mm / 2.1 x 1.6 x 2.1 inches (without cable)

[Weight] 54g / 5.4oz.

(Housing(s) compatible with Optical YS Converter/N1): MDX-D7100

*1 Operating time depends on the battery brand, temperature and frequency of use.

*2 Operating times tested on 750 mAh batteries.

Product No.50126

Movie on “How to Fit the Optical YS Converter in a Compatible Housing” has just been posted on YouTube.
