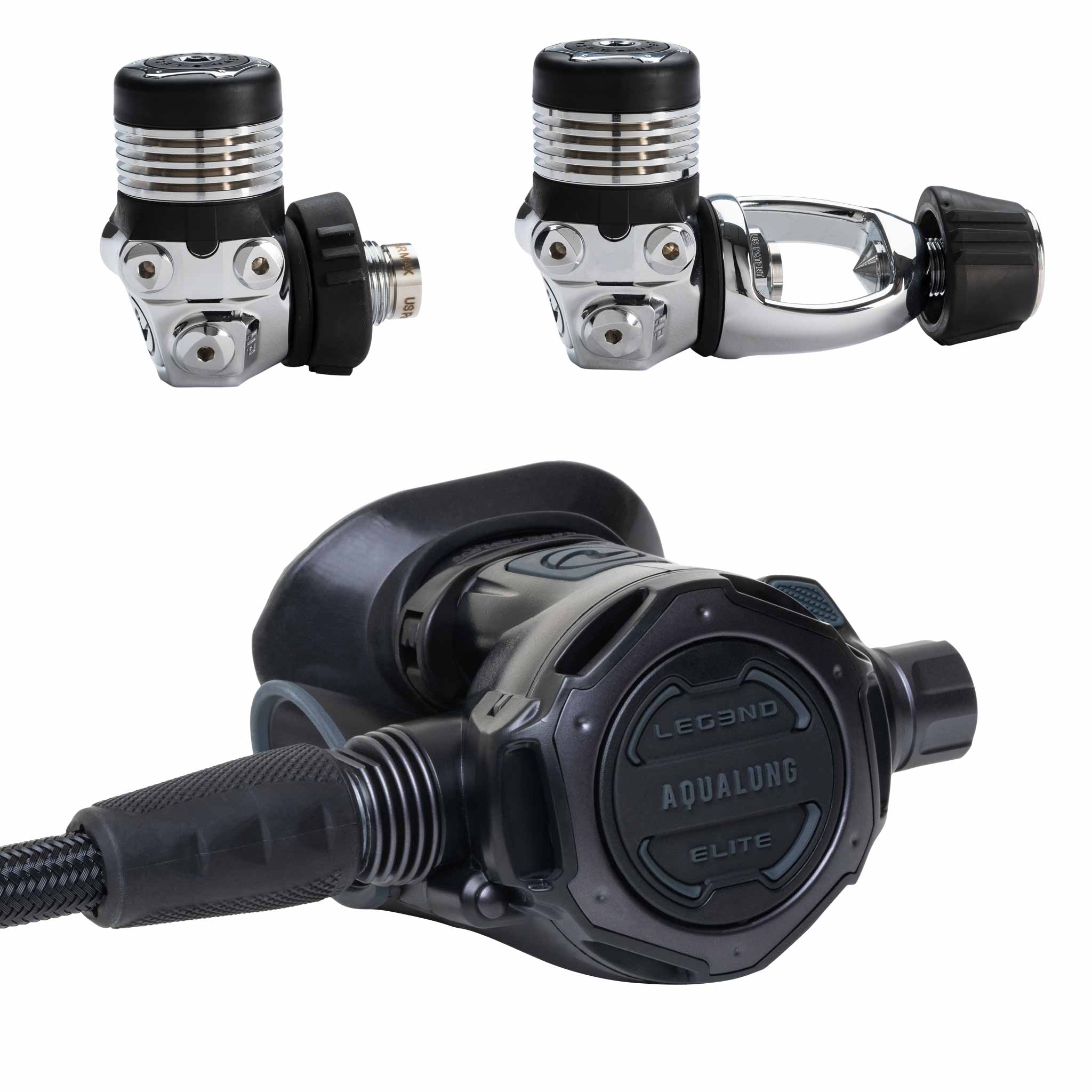

Aqualung Legend Elite Black Edition

The LEGEND First Stage Features:

• Auto Closure Device (ACD) keeps the inlet shut to protect the first-stage internal parts from contamination and corrosive water when the first stage is not connected to a cylinder valve. This:
  • Preserves the internal lubrication
  • Keeps the inlet filter clean and dry
  • Safer for elevated percentages of oxygen
• Exceptional cold-water performance is achieved by modernizing Aqua Lung’s three anti-freeze properties:
  • Where there’s no moisture, there’s no ice: The LEG3ND’s integrated dry chamber keeps inner components clean and dry by isolating them from the outside environment.
  • Deep ribs create a large heat exchange surface area that helps to prevent ice from forming on the mechanism (+30% vs Glacia / +70% vs Legend 2)
  • The new over-moulded cap delays ice forming over the external diaphragm
• Auto-Balanced (also known as Over-Balanced)
• Progressive increase of the working pressure to maintain optimum breathing efforts: Depending on the diver’s depth, the working pressure of the first stage is automatically elevated to counteract the increased breathing air density
• Ergonomically shaped YOKE screws made of a bi-material “Soft Grip” surface provide a better hold when installing or removing the first stage – especially with cold hands.
• Channelled YOKE screw to prevent water retention.
• Specialized ACD Dust cap attached to the regulator body to protect the inlet fitting and the ACD system from impacts or damage
• Perfectly positioned HP and MP ports to provide optimal hose routing

The Legend Black Edition Second Stage Features:

• Black Titadur Coated Bezel and Ring
• Black on Black Co-Molded Exhaust Tee
• Stainless Steel purge button
• New front cover opening channels allow water to flow sideways over the diaphragm
  • Radial openings to prevent freeflow when diving in stronger currents
  • Openings widened to reduce peak inspiratory flow by an impressive 20%
• New over-moulded exhaust cover made of elastomer with a “soft touch” effect
• Overmolded air purge
  • A wide surface area makes regulator purging easier
  • The purge depth controller optimizes airflow with minimal effort
• A patented Comfobite mouthpiece reduces jaw fatigue and secures the second stage more comfortably.
• A detachable and reusable mouthpiece clamp allows a quick and simple tool-free mouthpiece change without plastic waste.
• The enlarged heat exchanger helps to prevent the freezing of the second-stage mechanism
• Air channel deflector
  • Directs the air flow evenly during the inhalation phase
  • A streamlined bi-material deflector lowers the exhalation effort
• Flexible and lightweight Aqua Flex hose with dual protectors

What’s in the Box

• LEG3ND Black Edition 1st and 2nd Stage Regulator
• User’s Guide

Legend Elite Specs

LEG3ND First Stage

Type of first stage                         Overbalanced diaphragm design

Auto-Closure Device (ACD)          Yes

Number of HP ports                     2

Number of MP ports                    4

1st Stage Flow Rate                      1500 l/min

1st Stage Weight in Yoke             957 gm

Environmental Dry Kit                  Permanent

First stage exterior                        Chrome over marine brass



LEG3ND Second Stage

Type of second stage                    Pneumatically balanced

Controls                                          Venturi switch

Breathing resistance                     Adjustable

Mouthpieces                                  2ea. – A Comfo-Bite, installed, and a standard with bite wings in the box

Lip shield                                         Included

Heat Exchanger                             Standard on all models

2nd Stage Weight                          227 g

Hose length                                    730 mm

Overall Work of Breathing           Avg. 0.70 joules/liter

Nitrox compatible                          Yes, to 40% O2 when new, out of the box
