Apeks MTX-RC Single Cylinder Set

The Apeks MTX-RC Single Cylinder Set with Long Hose is designed for the diver that prefers an extended hose configuration on a single cylinder. It is also the perfect set-up for the recreational diver looking to transition into twinset diving in the future, as the addition of another first stage creates a twinset regulator configuration.

Combining rugged, military-grade engineering with the super-smooth breathing experience that Apeks regulators are renowned for, the MTX-RC single cylinder set dives your way.

Featuring the same freeze-resistant technology enjoyed by the whole MTX-R range, the MTX-RC resists free flows in even the coldest temperatures, while offering the user the additional flexibility to dial it out for a comfortable breathe in less extreme environments.

All this is achieved using an innovative first stage design that protects the regulator from freezing and a full set of user controls on the second Stage to adjust the breathing performance based on the diver’s individual needs. Regulator kit Includes a tactical style messenger bag to keep your regulators safe on your travels. Perfectly sized for a laptop, it’s also your new work bag!

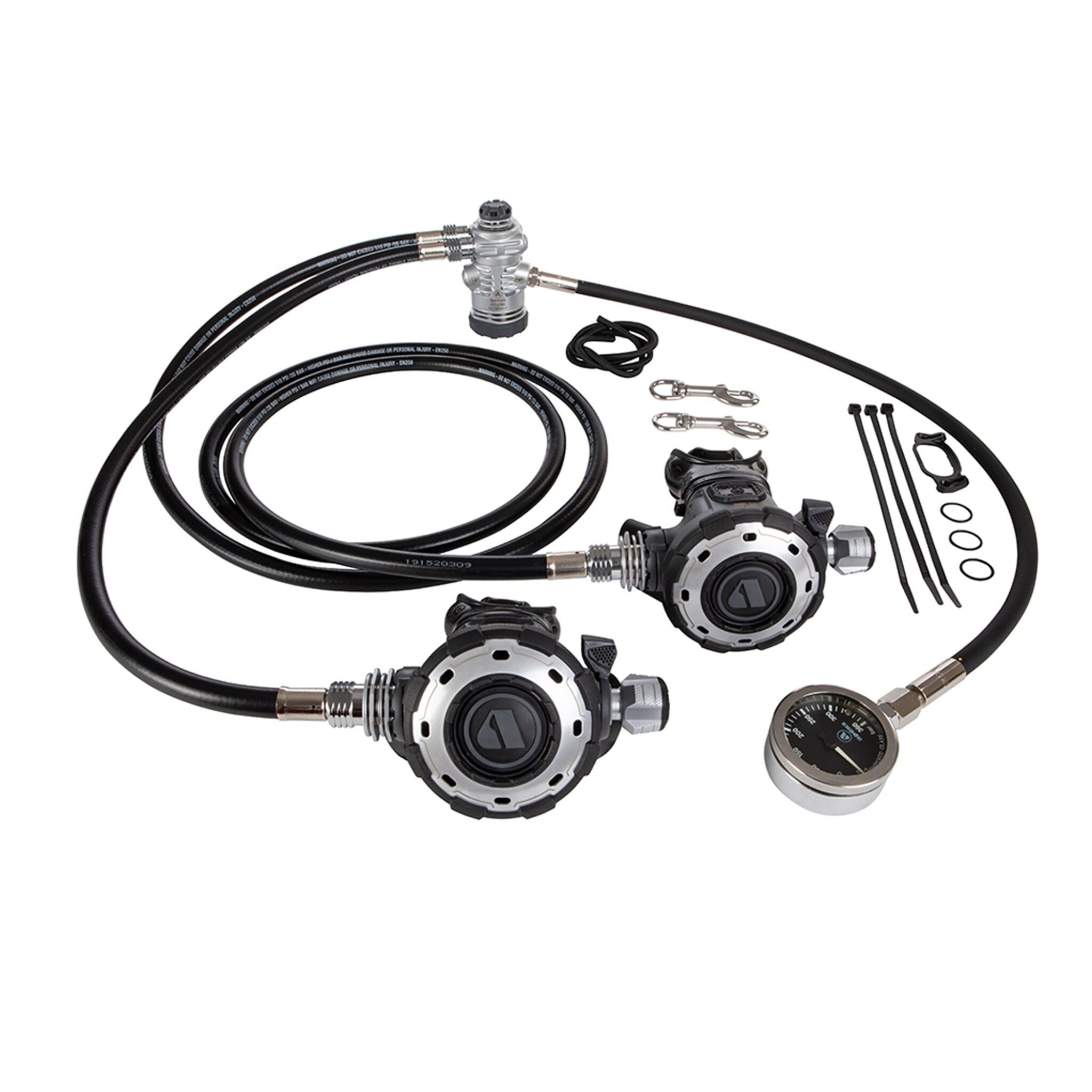

Regulator Package Includes:

• 2 x MTX-RC primary second stages
• 1 x MTX-RC first stage,
• 1x 2.1m double swivel hose
• 1x 49cm double swivel hose
• 1x HP hose
• 1x Apeks TEK SPG
• 1x Bungee Connector Kit
• A Tactical style regulator bag



MTX-RC First Stage Features:

• Satin plated brass body with heat exchanging ribs for maximum thermal performance
• .Break through, innovative over-moulded first-stage endcap and environmental diaphragm help prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage. Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
• Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
• 5 x medium pressure ports, 4 mounted on a rotating turret for improved hose orientation
• 2 x angled high-pressure ports for optimal hose routing and fitting of transmitters.
• Has a Double swivel hose for greater freedom of movement and comfort.
• Easy to grip DIN hand-wheel or over-moulded yoke hand-wheel, only requires one hand to release.
• DIN, Yoke and M26 Thread available, 300bar, 232bar and M26 300bar (O2) respectively.
• Is tested for Octopus use – EN250A to 60 metres cold water.
• Nitrox/Oxygen compatible – Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.

MTX-RC 2nd Stages

• Has built-in protective bumpers to protect the second Stages from impacts and scratches in there most vulnerable places.
• Ergonomic and simple to use venturi lever.
• Oversize breathing effort adjuster makes adjustment easy in cold water while wearing gloves.
• Large purge button.
• MTX-RC are reversible second Stage for either a left or right-hand gas supply configuration.
• A heat exchanger (patented) dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for more comfortable breathing.
• Regulators feature an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.
• Comfo-bite mouthpiece
• Has flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
• They are designed and manufactured in the UK.
• No single-use plastic in the packaging

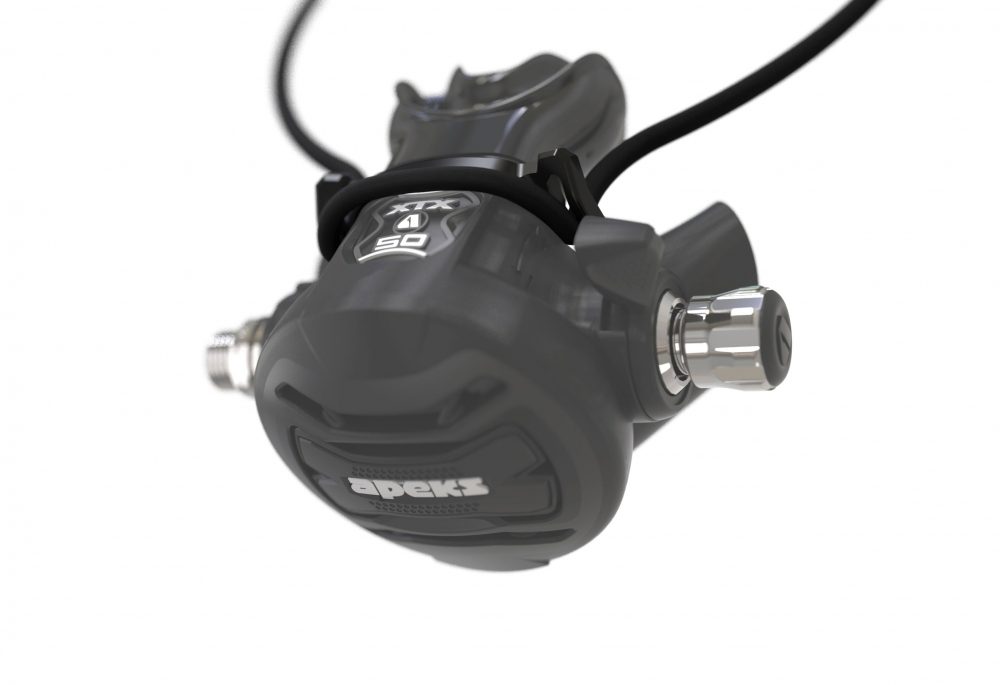

Bungee Connector Kit:

Apeks MTX-RC Single Cylinder Set Specifications

Weight DIN – 1.193 kg (2.63lbs)

Max working pressures 1st Stage

DIN – 300 bar (4351 psi)

Yoke – 232 bar (3365 psi)

2nd Stage

9-10 bar (131-145 psi)

Part Numbers RG122129 – MTX-RC Regulator yoke

RG122130 – MTX-RC Regulator DIN

RQ115117 – MTX-RC Stage 3 set

RT127128 – MTX-RC 1st stage yoke

RT127127 – MTX-RC 1st stage DIN

RS116119 – MTX-RC 2nd Stage
